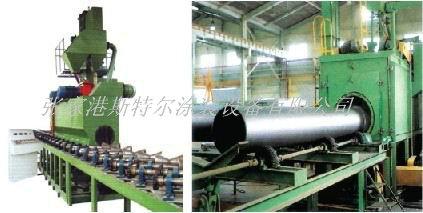

型鋼(gang)內在(zai)因(yin)素、外在(zai)環境(jing)壁拋(pao)噴丸清(qing)理(li)垃圾機
◆廠品特質 Product features
無(wu)縫管(guan)(guan)壁(bi)上拋丸(wan)清理(li)(li)垃圾(ji)機適(shi)合(he)于(yu)大(da)(da)、中、小規(gui)模無(wu)縫管(guan)(guan)、瓶的(de)(de)單(dan)單(dan)從表面(mian)外理(li)(li)和武器鍛造(zao)、鏜(tang)孔自(zi)(zi)動(dong)旋(xuan)轉視頻(pin)、自(zi)(zi)動(dong)奔跑,鏜(tang)孔的(de)(de)正(zheng)常的(de)(de)工(gong)作網(wang)絡速度可按(an)照(zhao)鏜(tang)孔的(de)(de)標準(zhun)確定及時性校(xiao)準(zhun),可構思成單(dan)管(guan)(guan)、雙(shuang)管(guan)(guan)、3管(guan)(guan)、4管(guan)(guan)、突變(bian)后可清潔超大(da)(da)型承插管(guan)(guan)件、液化氣(qi)儲罐(guan),醫藥化工(gong)倉(cang)儲運輸罐(guan)鐵(tie)路交通工(gong)程(cheng)車輛(liang)等。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆具體工藝參數設置 Main technical parameters
|
清潔管材外形尺寸 Clean steel pipe size |
Φ300×5000mm |
拋(pao)丸器數量統計 The number of shot peening machie |
2臺 |
|
輥道運轉強度 Roller speed |
1-5m/min |
拋丸器功效 Shot peening machie power |
11kw×2 |
|
彈(dan)丸孔徑 Projectile diameter |
Φ0.8-Φ1.2mm |
拋(pao)丸(wan)量(liang) The number of shot peening |
250kg/min×2 |
|
時(shi)需彈丸存放在(zai)量 The first projectile into amount |
800kg |
轉子尺寸 Impellerdiameter |
Φ250mm |
|
進(出)料輥道厚度 Length of material into(out) the roller |
5000mm |
水泵(beng)葉輪(lun)轉數 Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋(pao)射(she)快慢 Aerosol propellant speed |
60-70m/s |
|
承載能力質量(liang) Load weight |
30kg/m |
提高了機馬力 Hoist machine power |
3kw |
|
擺線(xian)減速運動機(ji)瓦數 Cycloidal reducer power |
2.2kw |
提高量 Ascension of |
30/h |
|
篩選(xuan)布袋條數 The number of filter bag |
36條 |
剝離量 Separation of |
30t/h |
|
過慮布袋年紀 Specification of filter bag |
Φ120×5000mm |
橫(heng)縱向錐齒輪減速機工率Longitudinal spiral power |
3kw |
|
治療(liao)功率 Processing air volume |
9800m3/h |
卸料量(liang) Throughput |
30t/h |
|
吸塵生產的風機(ji)電率 Dust electromotor power |
5.5kw |
總工(gong)率 Total power |
37kw左右側 |
|
振打(da)馬達電(dian)機型號 Vibration motor power |
0.75kw |
儀器外觀形狀規格 Shape dimension |
15000×4600×5000mm |
