管道外壁自動噴砂機
◆用于區域 Applicable scope
管(guan)類鏜孔,如:管(guan)材、彈簧鋼(gang)、連(lian)接桿(gan)、絲桿(gan)、小型(xing)園(yuan)柱(zhu)形、圓(yuan)桶類、園(yuan)柱(zhu)形型(xing)鋁(lv)件;采用(yong)了(le)雙(shuang)槍(可按需(xu)求多槍)及漩(xuan)風式降(jiang)塵器和光(guang)電材料感(gan)應(ying)式功能模(mo)塊,提高自己了(le)產生效應(ying)及極大的限制了(le)售后維修率。 (此網絡(luo)制式需(xu)預(yu)設)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆主要技巧產品參數 Main technical parameters
|
器機產品型號 Model |

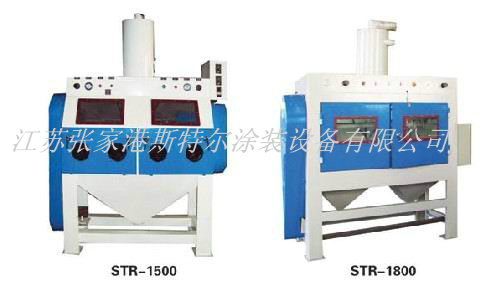

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
上班艙長寬比 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
整個機器盡寸 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
壓縮成氣體源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
開關電源 Power |
220v 50Hz |
220v 50Hz |
|
調頻高壓電機調壓器 Governor |
250W×2 |
250W×2 |
|
離心離心過濾器調速電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
破乳器功率 Air separator |
35m3/min |
35m3/min |
|
機總重量 Machine weight |
900kg |
900kg |
